PRODUCT

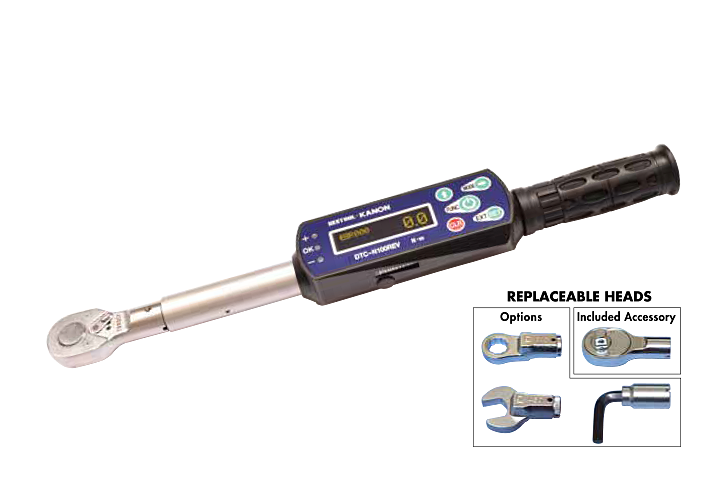

DATA OUTPUT DIGITAL TORQUE WRENCHES
DTC-REV Series
Multi Function dataout put digital torque wrench with OLED display.

FEATURES

Accuracy :±1% of indicated value +1 increment, over full range
Display :OLED
Measuring mode :Peak hold Peak to Peak Tracking
Measuring direction :CW / CCW changeover, provided with
CW / CCW status display
Power supply :Lithium-ion rechargeable battery 18650
100-240V battery charger
Battery Life :Approx. 20 hours with fully charged battery.
(continuous operation)
Auto power-off :Approx. 30 minutes
Tolerance setting :1 to 10%. Automatic judgment for pre-set target torque
Data input :1000 data can be stored

It can be measured tightening torque (CW) and loosening torque (CCW) with digital display. When the pre-set target torque is achieved,
it can be confirmed with change of sounds. The preset values and tolerance can be set and the pass/fail judgment appears on LED.
Data include the date (year, month, date) and time (hour, min, second) in DTC-REV. Since the OLED is high visibility, the display is easy to read even in the dark.
KANON DIGITAL TORQUE WRENCHES
DLT-N Series
Digiral control for ease of use and handling. Precise control of torque at a low cost.


FEATURES

  • The digital torque wrench DLT-N series measures and digitally
    displays
    tightening torque and return torque.
  • Preset function: Set the tightening torque before operation,
    and the LED
    and a buzzer tell you when the preset torque is
    reached during operation.
  • Data memory function: Connect the torque wrench after use
    to your PC,
    and the measurement data is stored in the PC for
    editing in the Excel
    format (Windows Excel only).
  • Powered by 2 rechargeable nickel–metal hydride (Ni-MH)
    batteries,
    which are recharged via the USB port of the
    torque wrench while they
    are in the wrench.
  • Auto power-off: Saves power to enable use of the unit for a longer time.
  • Calendar function: Date and time of tightening operations
    are stored in
    the memory.
  • Smart and slim design based on a new concept.
  • The head is easily replaceable to suit different purposes of use.
  • ±2% + 1 digit guaranteed accuracy (±3% + 1 digit for DLT-N50-UC).

Names and Functions of Components

Power key Power ON/OFF; clears measured value in PA mode.
Data key Saves and calls data.
Mode key Selects the measurement mode.
UP key Sets tightening torque in the preset mode;
searches a particular
data in the data calling mode; sets calendar and clock.
DOWN key Sets tightening torque in the preset mode; searches a particular
data in the data calling mode; sets calendar and clock.
LED Flashes to indicate that the preset torque is soon to be reach; an
intermittent buzzer sounds. Lights up to indicate that the preset torque has
been reached; a continuous buzzer sounds.

LCD display Displays various data.
USB terminal For battery charging and data outputting (Windows only).

ADJUSTABLE, RATCHET TORQUE WRENCHES
QLK Series
Freely set torque values within the capacity range. Replaceable socket, ratchet wrenches.

FEATURES

  • The ratchet improves efficiency.
    These wrenches are well suited for repetitive work.
  • By replacing the sockets, various sizes of fasteners
    can be tightened within the tool's capacity range.
  • By reversing the ratchet, the wrench can be used to
    loosen fasteners counter-clockwise.
  • Tightening to a torque setting can only be done clockwise.
  • Accuracy : +-3% of Indicated value over the full range.

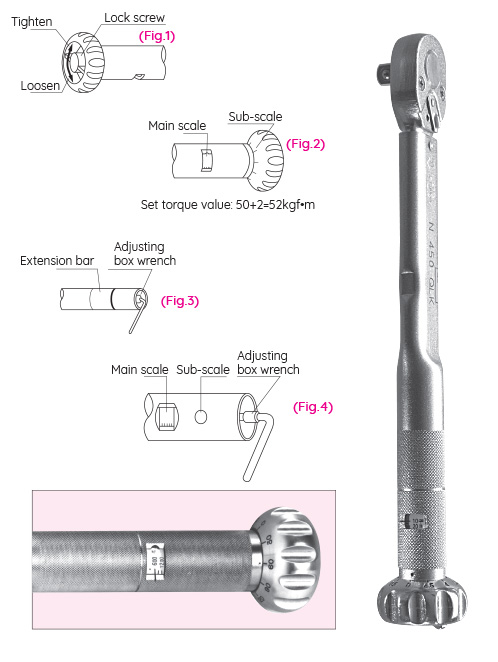

ADJUSTING THE TORQUE SETTING

30QLK ~ 5600QLK

  • Loosen the lock screw. (See Fig.1)
  • Turn the sub-scale and adjust to a torque value
    (the main scale plus the sub-scale) (See Fig.2)
  • Tighten the lock screw. (if the lock screw hits the pin before
    completely tightenning,then change the position of the pin)

7000QLK ~ 14000QLK

  • When applicable, mount the extension bar snugly all the way
    onto the body of the wrench .
  • With the extension bar mounted (See Fig.3), insert the hexagonal
    side of the adjusting box wrench.
    - Without the extension bar (See Fig.4), insert the hexagonal side
    of the adjusting box wrench into the body.
  • Turn the adjusting box wrench to set the torque value.
    (the main scale plus the sub-scale)

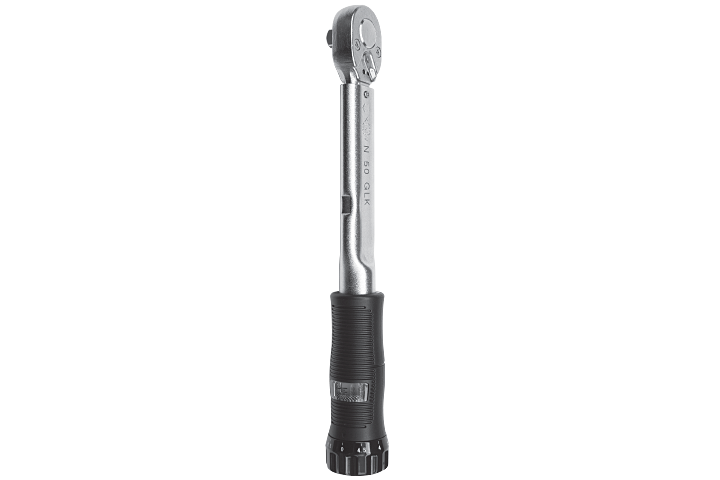

ADJUSTABLE, RATCHET TORQUE WRENCHES PLASTIC GRIP
GLK Series
Freely set torque values within the capacity range. Replaceable socket, ratchet wrenches.

FEATURES

  • The ratchet improves efficiency. These wrenches are
    well suited for repetitive work.
  • By replacing the sockets, various sizes of fasteners
    can be tightened within the tool's capacity range.
  • By reversing the ratchet, the wrench can be used to
    loosen fasteners counter-clockwise.
  • Tightening to a torque setting can only be done clockwise.
  • Accuracy : ±3% of indicated value over the full range.

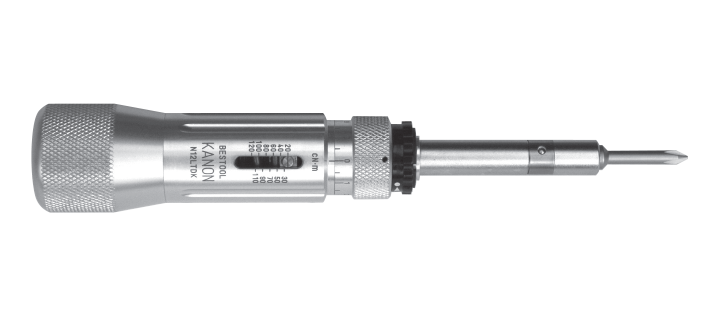

CLUTCH, RELEASE TORQUE SCREW DRIVERS
LTDK Series
Clutch release prevents over-tightening, reduces fatigue.

FEATURES

  • Comfortable grip for extended use.
  • Light weight and short overall length facilitates jobs.
    Sensitive clutch release helps the operator feel when
    the torque setting is reached.
  • Set the required torque value and tighten,
    all operator tighten consistently.
  • Two phillips bit are included.
  • Various hex and box drive bits are avaiable.
  • Use for both clockwise and counter-clockwise tightening.
  • Accuracy:±3% of indicated value over the full range, clockwise.

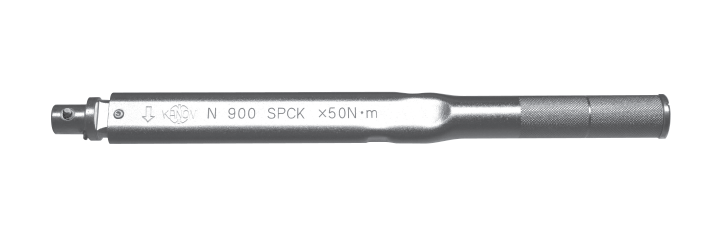

PRE-SET, REPLACEABLE HEAD TORQUE WRENCHES
SPCK Series
Work at a set torque value can proceed smoothly while using various replaceable heands.

FEATURES

  • Replaceable ratchet, open end wrench, ring,
    and hex drive heads are available.
  • Pre-set torque wrench well suited for repetitive jobs
    at the specified torque value.
  • Accuracy : ±3% of pre-set value

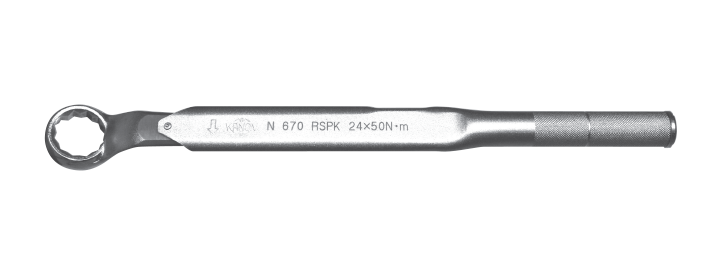

PRE-SET, RING TORQUE WRENCHES
RSPK Series
Can be used for accurate torque application evecn on joints inaccessible with other wrenches.

FEATURE

  • The ring head of RSPK wrenches is offset at a 45°
    angle making cerction joints particularly accessible.
  • A single function wrench, used for a single setting
    combination of fastener size and torque setting.
  • Most suited for tighening multiple same-size
    fasteners at the same torque on a production line.
  • Setting confirmation unneccessary.
  • Accuracy : ±3% of pre-set value
ADJUSTABLE, REPLACEABLE HEAD TORQUE WRENCHES
LCK Series
Freely replace heads according to work applications.
The combination of replaceble heads and torque adjustability make this series extremely versatile.

FEATURE
  • Ring, ratchet, open end wrench and hex frive headsare available.
  • The torque can be set to any value with in the capacity range.
  • Models are available ranging from 20 kgf•cm to 14,000 kgf•cm.
  • Accuracy : ±3% of indicated value over the full range
DIAL INDICATOR TORQUE WRENCHES
TOK-G Series
Easy to read dial indicator. Well suited for inspection and general maintenanace service.


FEATURES

  • Oval design with comfort rubber grip reduces strain.
  • Easily readable for inspections.
  • Useful for general tightening work.
  • Accuracy : ±3% of indicated value over the full range

USING A TOK WRENCH

  1. Turn the dial cap and set the indicator to 0.
  2. Mount a socket on the square drive.
  3. Tighten until the indicator point to the desired torque.
    *When using a peak indicator wrench, set it to 0 before tightening.

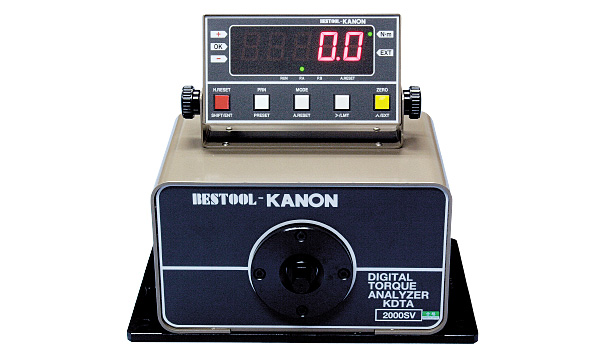

DIGITAL TORQUE ANALYZERS
KDTA-SV Series
Highly accurate and economical torque analyzer, easy for operators to use on the job site.

FEATURES

  • LED display eliminates reading errors.
  • Processor chip assures measurement with high reliability and accuracy.
  • The display unit angle can be adjusted approximately 90°.
  • Can be connected to various optional equipment
    (printer, personal computer, external input keyboard.)
  • Saves time and help speed up work.
  • Equipped with a kgf•cm/N•m selector swithch.
  • Operator can set min/man percentage parameters from 0-10%.
  • Analyzer can indicate in or out of specification with a green or
    red lamp respectively.



SPECIFICATIONS
  • Power : AC100-240V 50/60Hz
  • Accuracy : ±1% of the indicated value +1 increment, over the full range
  • Display : Red LED (Character height : 25mm.)
  • Operating temperature range : 0~40°C

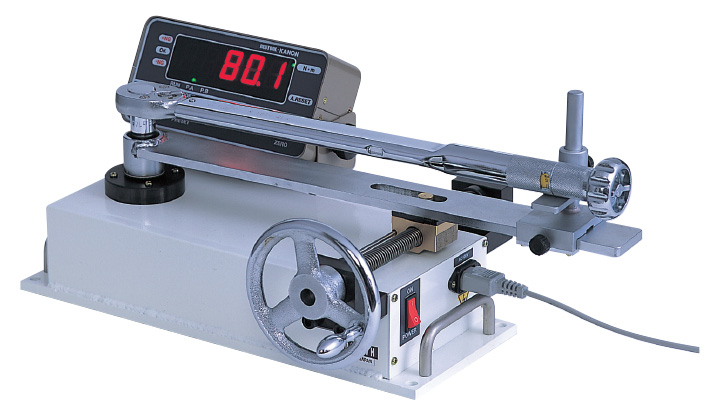

LARGE DIGITAL TORQUE ANALYZERS
KDTA-SVH Series

FEATURES

  • LED display eliminates reading errors.
  • Processor chip assures measurement with high reliability and accuracy.
  • The display unit angle can be adjusted approximately 90°.
  • Can be connected to various optional equipment
    (printer, personal computer, external input keyboard.)
  • Saves time and help speed up work.
  • Equipped with a kgf•cm/N•m selector swithch.

SPECIFICATIONS
  • Power : AC100-240V 50/60Hz
  • Accuracy : ±1% of the indicated value +1 increment, over the full range
  • Display : Red LED (Character height : 25mm.)
  • Operating temperature range : 0~40°C

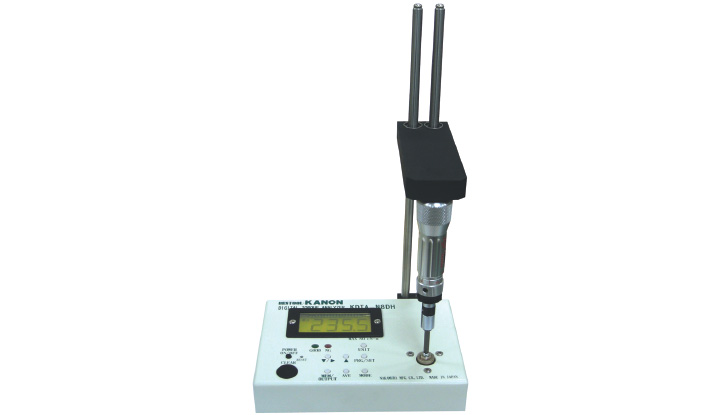

DIGITAL TORQUE ANALYZERS FOR TORQUE DRIVERS
KDTA-DH Series

FEATURES

  • Designed for LTDK and STDK
  • Battery powered
  • Battery Charger is available for AC 100V~240V 50/60Hz
  • Lightweight plastic case
  • kgf•cm/N•m/ lbf•in unit conversion

  • MODE : RUN (comstantly indicates torque value.)

    PEAK HOLD
    PEAK TO PEAK•HOLD
  • AUTO RESET : Timer function available
  • DATA OUTPUT : Digital output
  • PRINTER : TPK-3 (Optional)
  • Accuracy : ±1% of the indicated value + 1increment, over the full range

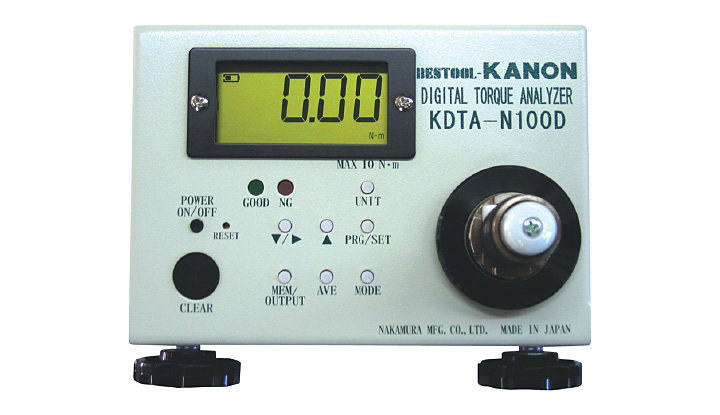

DIGITAL TORQUE ANALYZERS FOR ELECTRIC DRIVERS
KDTA-D Series

FEATURES

  • Battery is rechargeable.
  • For any brand of the Electric Driver
  • Battery Charger is available for AC 100V~240V 50/60Hz

  • MODE : RUN (comstantly indicates torque value.)

    PEAK HOLD
    PEAK TO PEAK•HOLD
  • AUTO RESET : Timer function available
  • DATA OUTPUT : Digital output
  • PRINTER : TPK-3 (Optional)
  • Accuracy : ±1% of the indicated value + 1increment, over the full range
