MEASURING TOOLS > TECLOCK

BRAND : TECLOCK

Original of Products : JAPAN

Detail :




CATALOG JET DOWNLOAD

CATALOG TECLOCK DOWNLOAD



PRODUCT
DIAL GAUGE

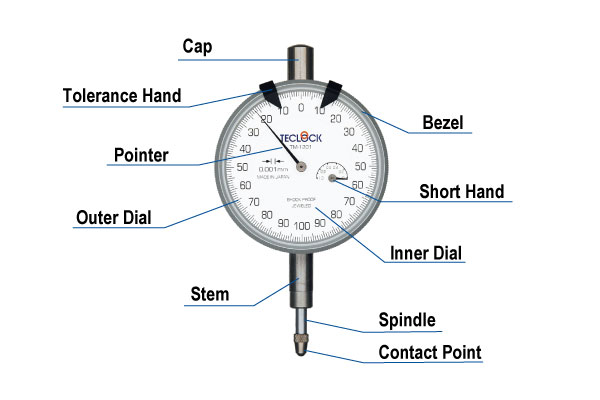

Dial Indicator is surely utilized at manufacturing sites where dimensional
high accuracy is needed to be confirmed. The graduation (1- graduation )
depends on usage and Teclock offers 6 kinds of graduations,
namely 0.0005mm, 0.001mm, 0.005mm, 0.01mm, 0.05mm and 0.1mm.
The strokes are available from 0.08mm (the shortest) up to 150mm.
Dial Indicator is normally not used independent but its stem or lug back
is fixed to a jig and holds work piece with the measuring stand and
contact point, and displacement volume is read with short hand and pointer.
The dial indicator is applied for direct measurement to measure actual
dimension and comparative measurement for measuring displacement volume
from a certain standard dimension.

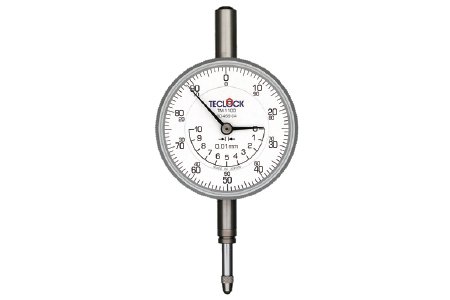

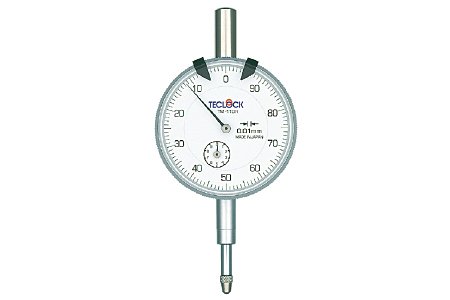

Dial Gauge
Standard Type
Dial Gauge
Reversed dial type
Dial Gauge
Coaxial revolution pointers type
Dial Gauge

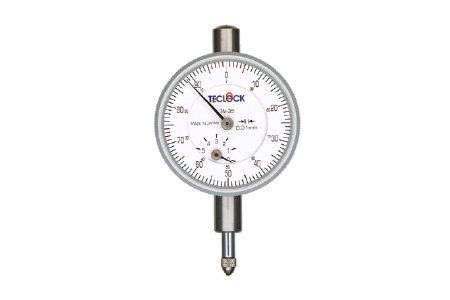

Small Dial Indicators
Dial Gauge

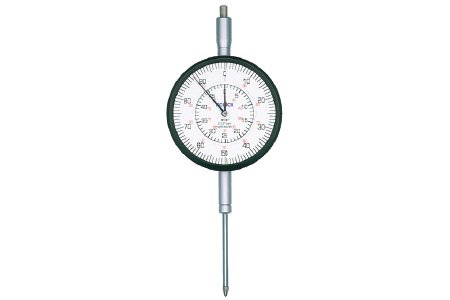

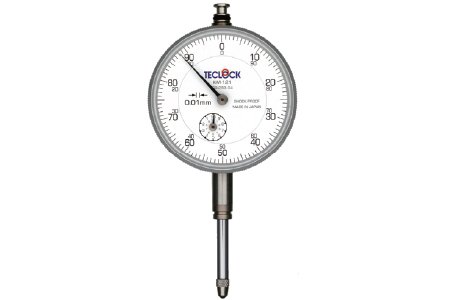

Long Stroke Dial Indicators
Dial Gauge
Long Stroke Dial Indicators
Coaxial revolution pointers type

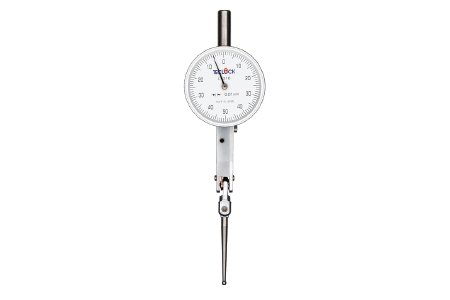

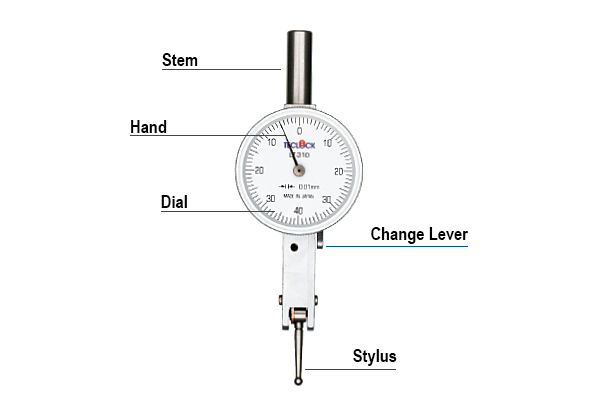

TEST INDICATOR

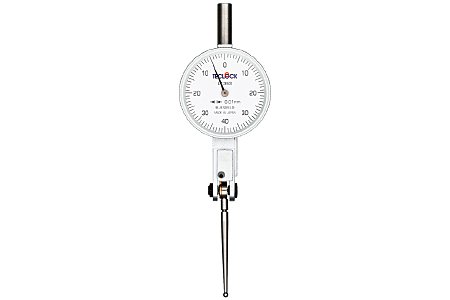

Dial Test Indicators are designed to the positioned for easy and accurate
readability and are applicable for various usages such as measuring
dimension, parallelism and centering of work piece and measuring
revolution axis of machinery equipment and turnout of work pieces
processed by lathe etc., and making table face of machinery equipment
parallel. This has strong point if compared with standard dial indicator
and has sensitivity for microscopic dimension displacement measurement.
As its stylus is leg type with ball edge, narrow space can be measured,
where its edge (standard φ2mm ultra hand ball ) can enter. φ0.6mm,
φ0.8mm and φ1.0mm are available.

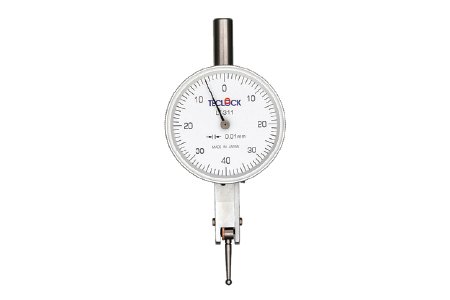

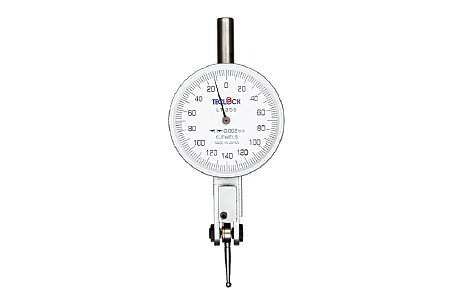

TEST INDICATORS

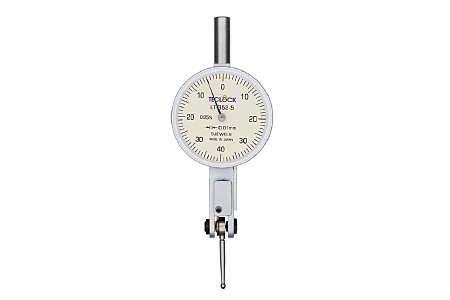

Standard Type
TEST INDICATORS
Auto-Clutch Test Indicators
TEST INDICATORS

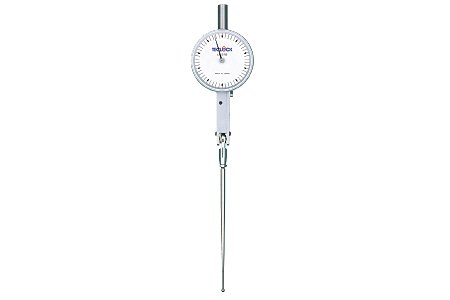

Long stylus
TEST INDICATORS
Auto-Clutch Test Indicators (Low measuring force)
TEST INDICATORS
Lever Test Indicator for Deflection
TEST INDICATORS
PS Type Test Indicator

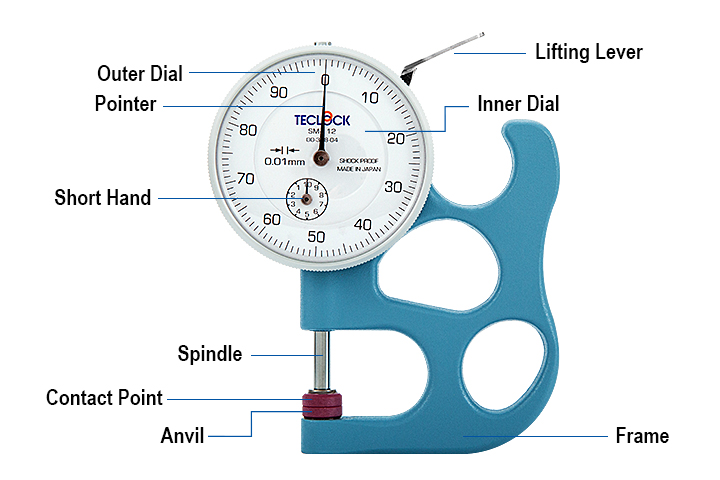

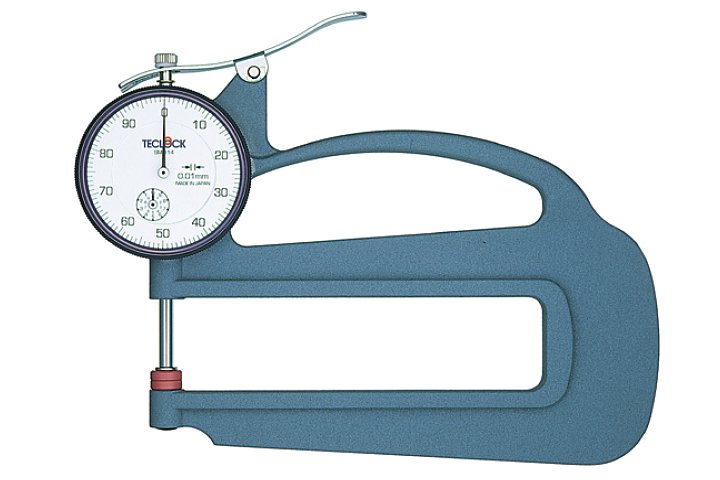

THICKNESS GAUGE
Dial Indicator is used by being fitted to jig etc.,
while thickness gauge is held with our hand.
Holding work piece between stylus and anvil, read the value directly.
Contact point moves to upward when lifting lever is pressed down,
and contact point returns to “zero” when it is released.
As operation is easy, it can measure for a short period compared with
micrometer. There are 2 kinds of Dial 0.01mm ,
0.001mm for both analog and digital.
The stroke depends on size of work piece and a model is
available to measure maximum thickness up to 50mm.
This can be used for various thickness measurement such as paper,
hair, rubber plate metal tube small molded components.
Dial Thickness Gauges
Measurement of up to 20mm thick
Dial Thickness Gauges
Insertion Depth
Dial Thickness Gauges

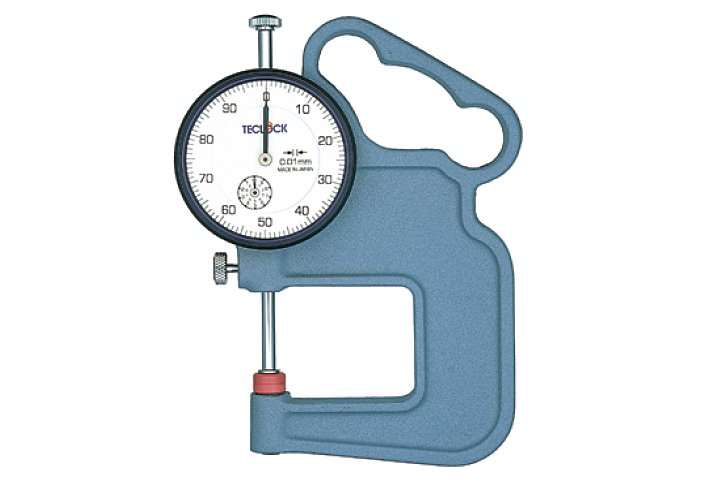

Dial Swift Gauges
Dial Thickness Gauges

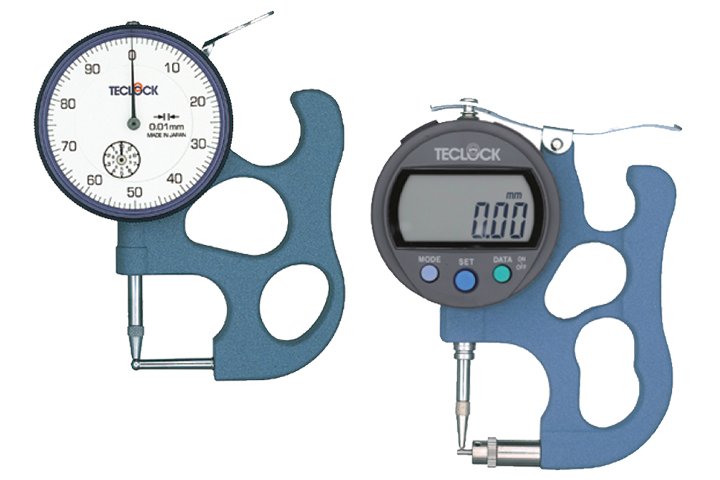

Dial Pipe Gauges
Dial Thickness Gauges

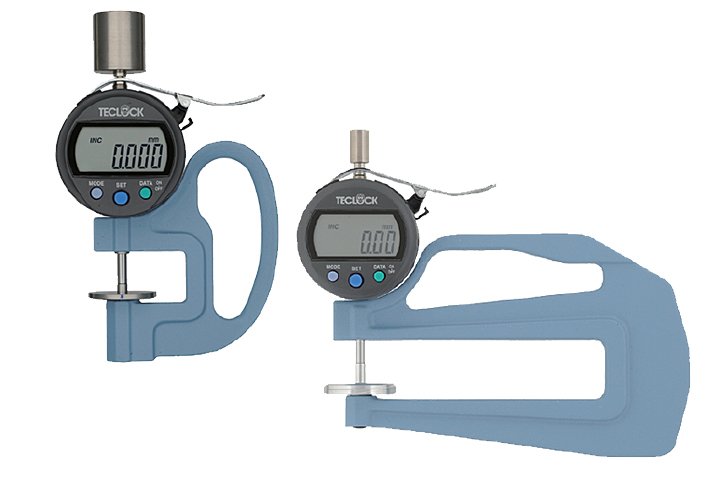

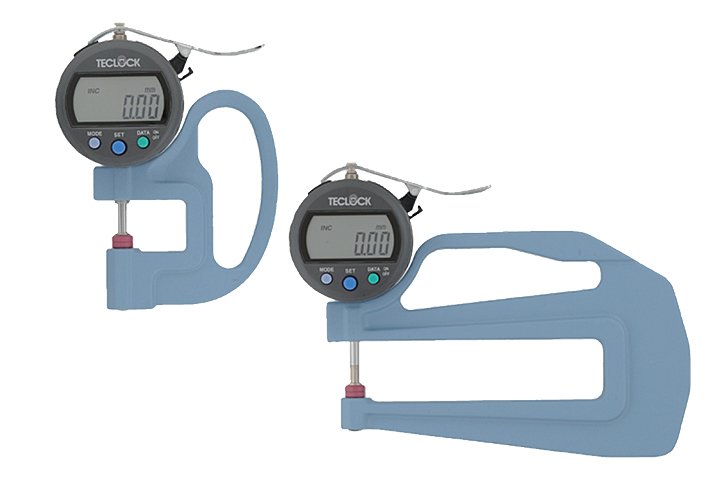

Standard Digital Thickness Gauges
Dial Thickness Gauges
Constant Pressured Thickness Measuring Instrument
DEPTH GAUGE

This is an exclusive instrument which measures steps
and depth of work piece by hand.

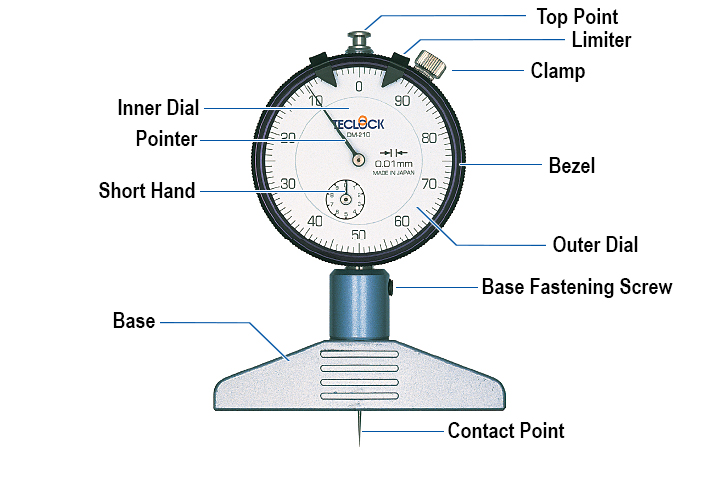

Setting “0” by sticking bottom face to measuring basics (zero point)
and rotating bezel. (Bezel is fixed by clamp at that time.).
Then, it reads with short hand and pointer
how contact point is salient from that position.
Analog and Digital models are available and they correspond
to usage of shape of contact point and basic size.
There are such standard models of stroke of 10mm,
20mm and 30mm and it can comparatively measure depth of
220mm to 240mm by connecting extension rods.

Depth Gauge

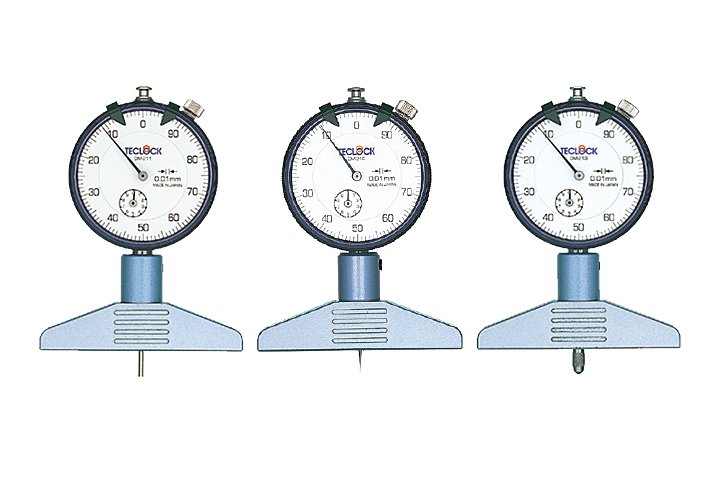

Dial Depth Gauge
Depth Gauge

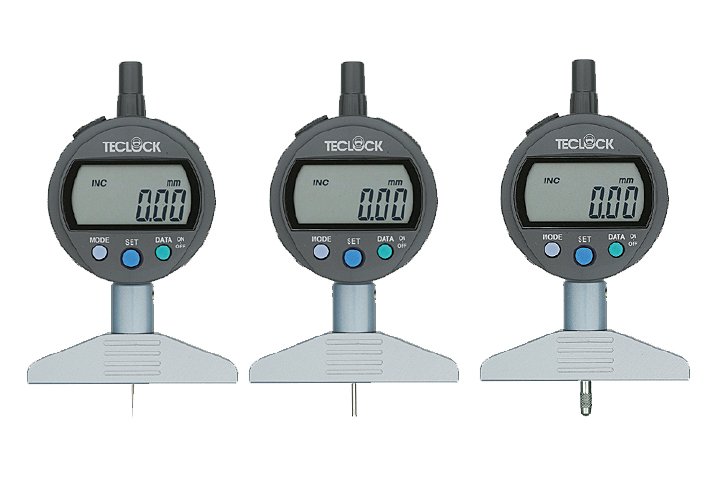

Digital Depth Gauge
Depth Gauge

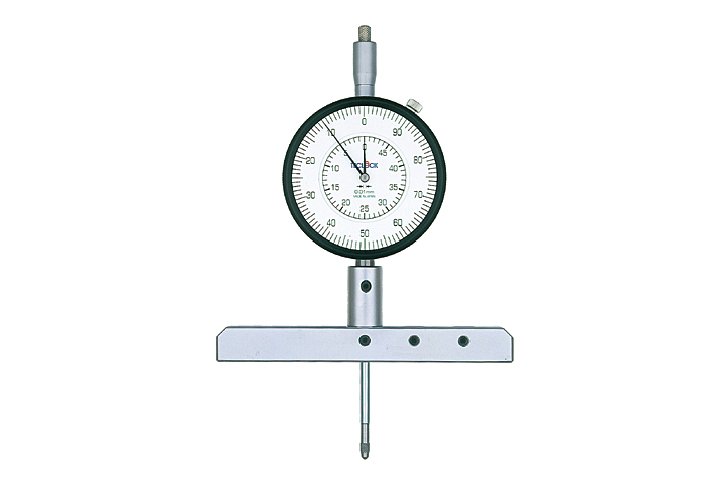

Dial Depth Gauge
Depth Gauge
Digital Depth Gauge
Depth Gauge

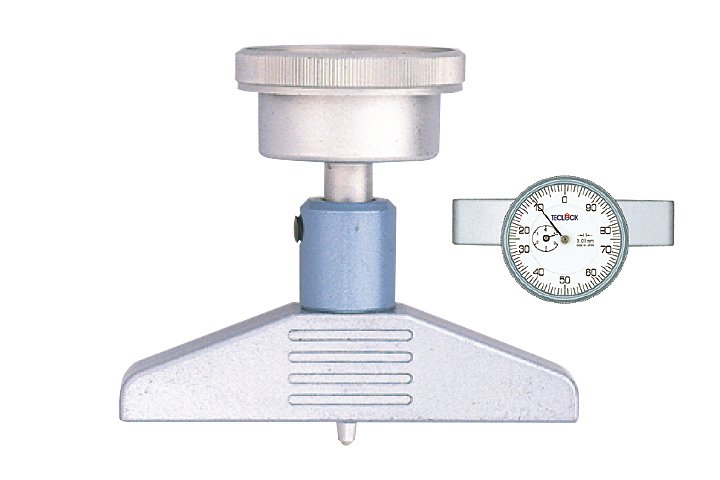

Back plunger type (Special)

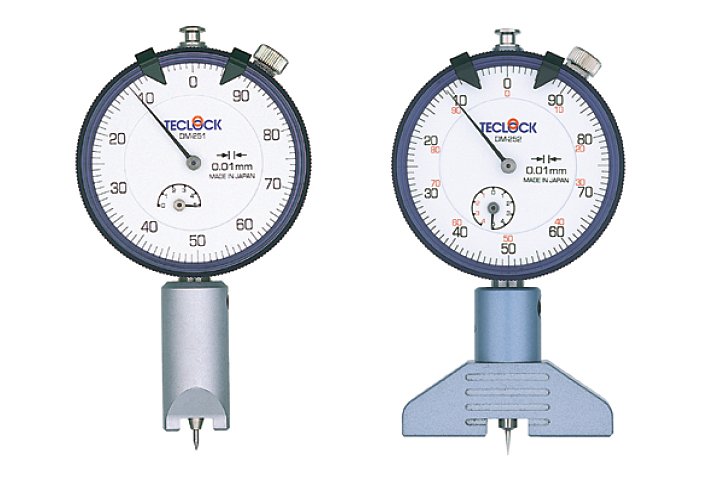

Depth Gauge
Printed circuit board for measurement

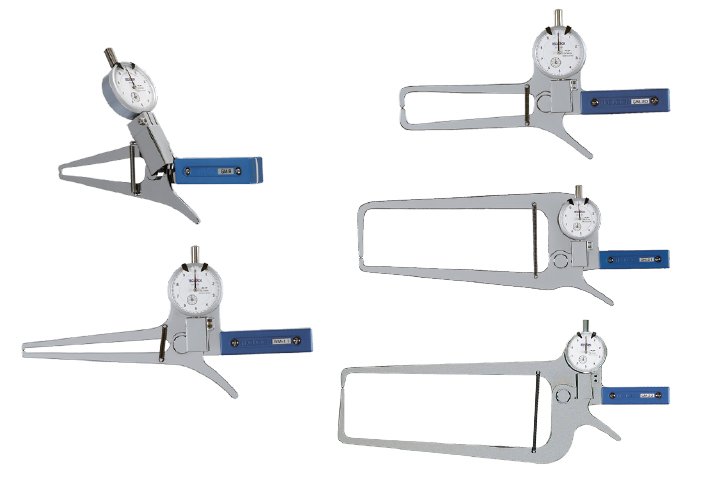

CALIPER GAUGE

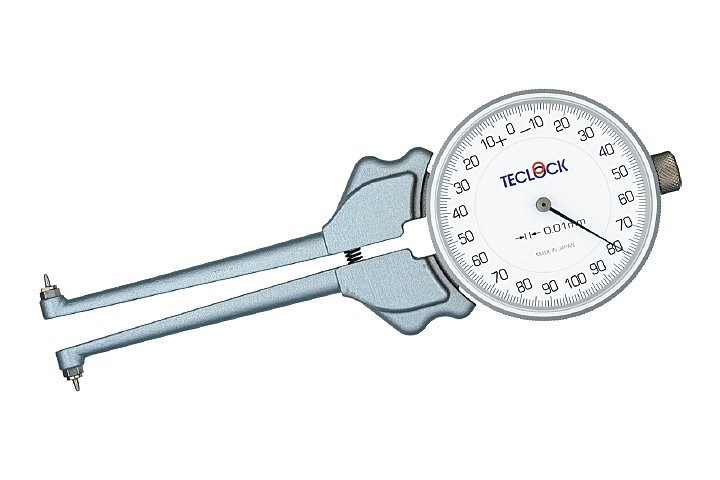

As to internal caliper gauge IM-880 series, the distance between
contact points facing
outside is firstly set at standard dimension with
ring gauge or micrometer. Then, it is
measured by inserting contact point
into internal dimension part to be measured after
its outer dial of which
moves together with rotated bezel is set at “0”. The displacement
of indicator
from “0” point of outer dial is to be measured at that time. The value
adding
to the read displacement to standard dimension or deducting it from standard

dimension is the dimension of internal diameter.
This series attaches spare contact
point which cam set accurate dimension
corresponding to size of internal dimension.

External caliper gauge is opposite, namely reading the value by
holding work piece
with 2 contact points facing outside.
Caliper Gauge
Dial Depth Gauges
Caliper Gauge
One Revolution Internal Dial Caliper Gauges
Caliper Gauge

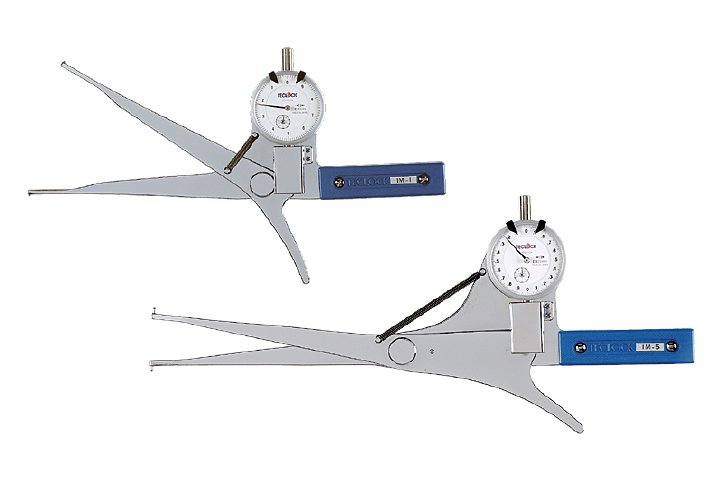

Internal Dial Caliper Gauges
Caliper Gauge

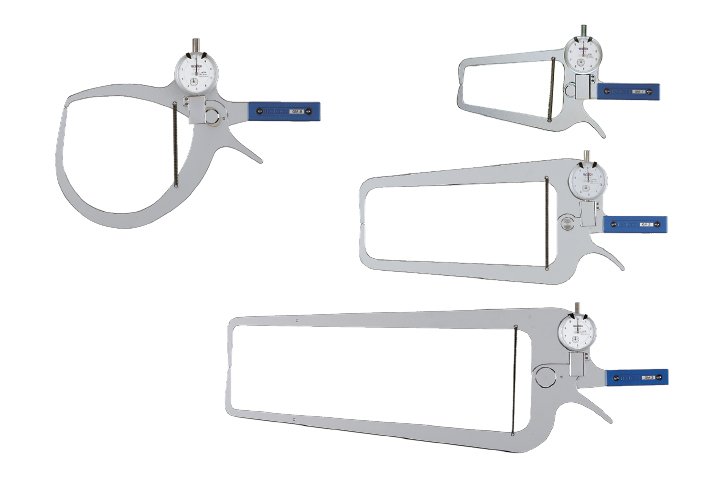

External Dial Caliper Gauges
Caliper Gauge

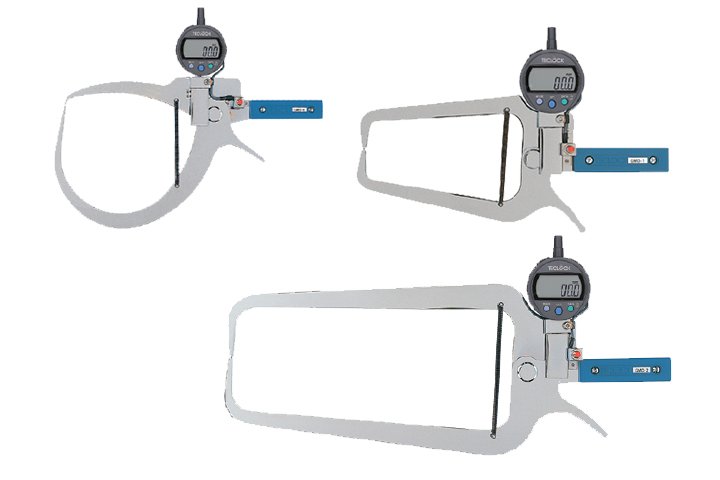

External Digital Caliper Gauges
Caliper Gauge
Dial Depth Gauges

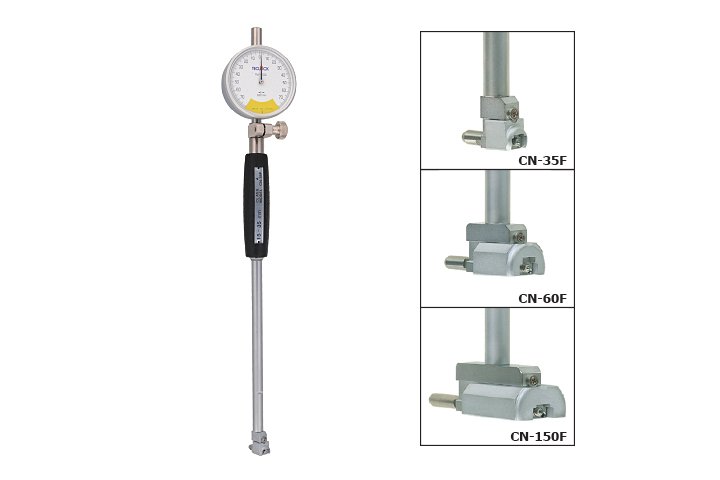

BORE GAUGE


Bore Gauge is the comparative measuring instrument which measures internal diameter of a hole by comparing with master gauge (micrometer, ring gauge etc.).
Center of prove and anvil are guided to diameter part of a hole by guide assembly and displacement of contact point is transferred to dial indicator
(Automatic centripetal mechanism ) by right angle change in the ratio of 1 : 1 with cam mechanism.
Measurement accuracy is changed according to graduation (resolution) of used dial indicator.
Measuring range are available from minimum φ6mm to maximum
φ450mm according to size of diameter.
Bore Gauge
(CD type)
Bore Gauge
(CD type) for shallow hole

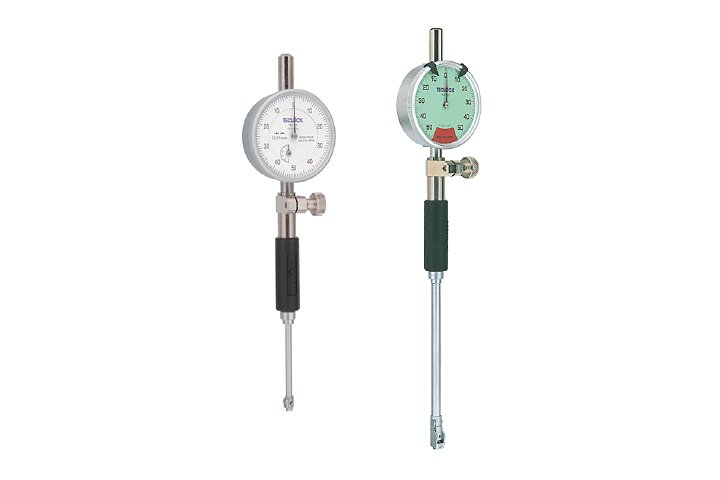

Bore Gauge
(CD type) for small holes
Bore Gauge

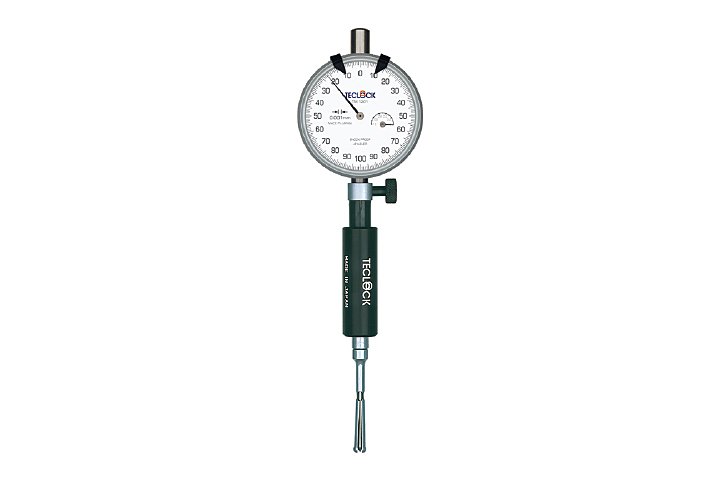

Micro-Hole test

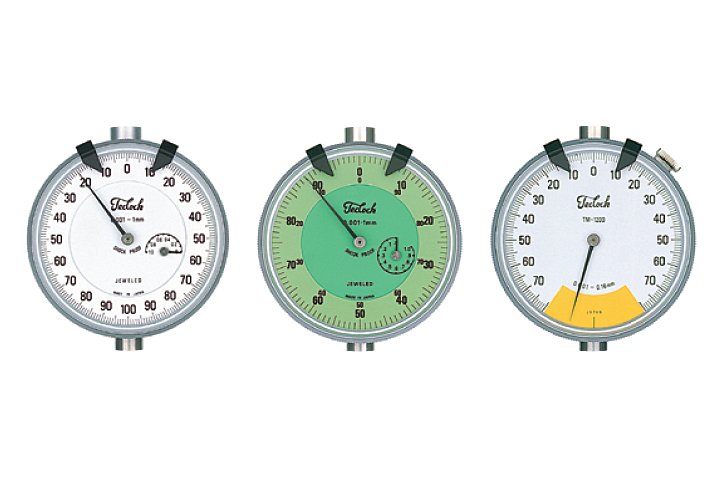

Bore Gauge

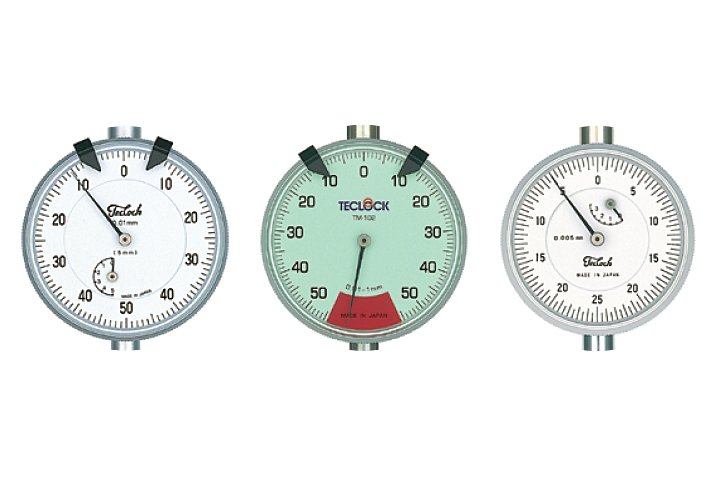

Technical Data
Bore Gauge
Technical Data
Other Precision Measuring Instruments
Dial Tension Gauges

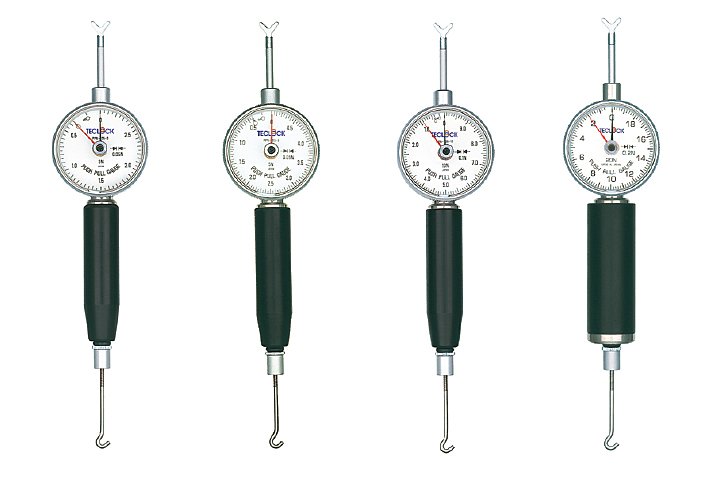

Push Pull Gauges

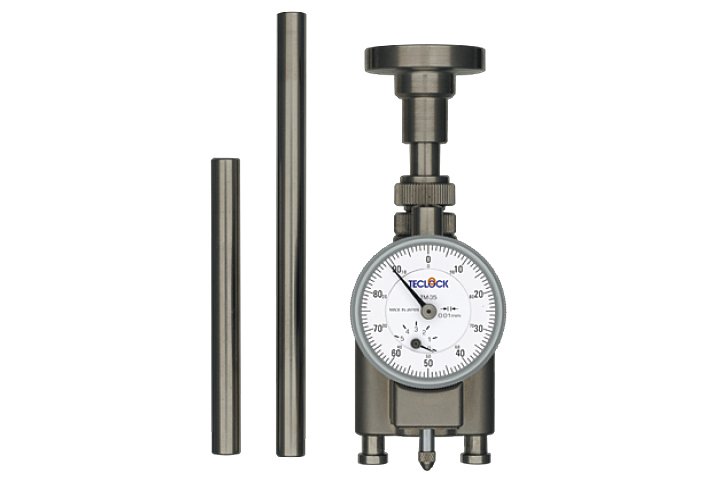

Crankshaft Deflection Gauges

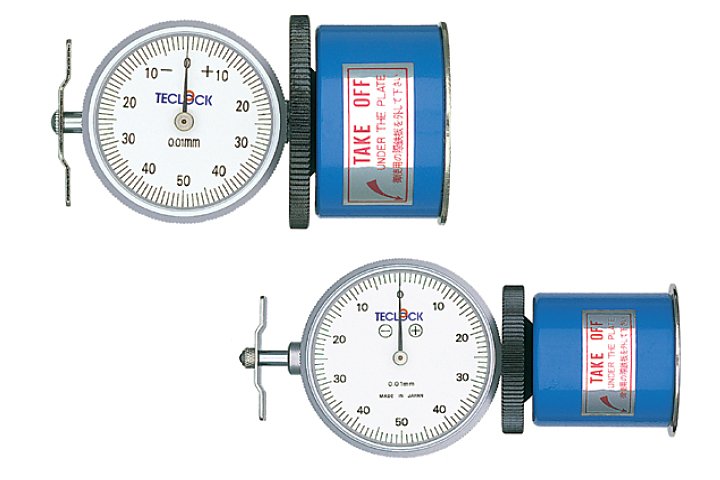

Crankshaft Deflection Gauges with magnet
Small type

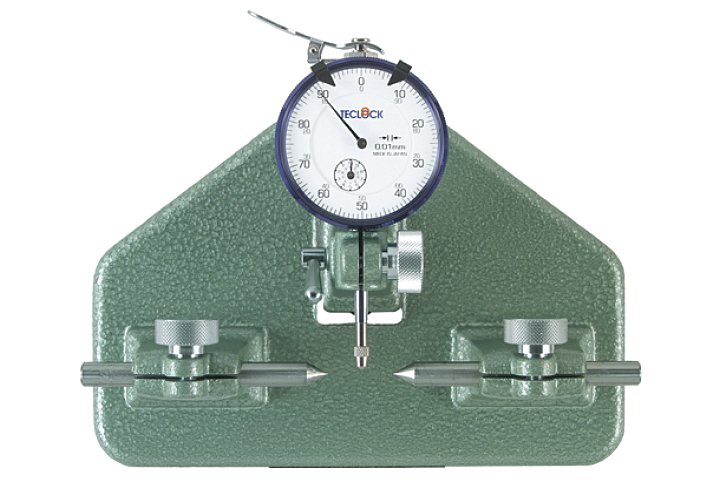

Small Bench Center

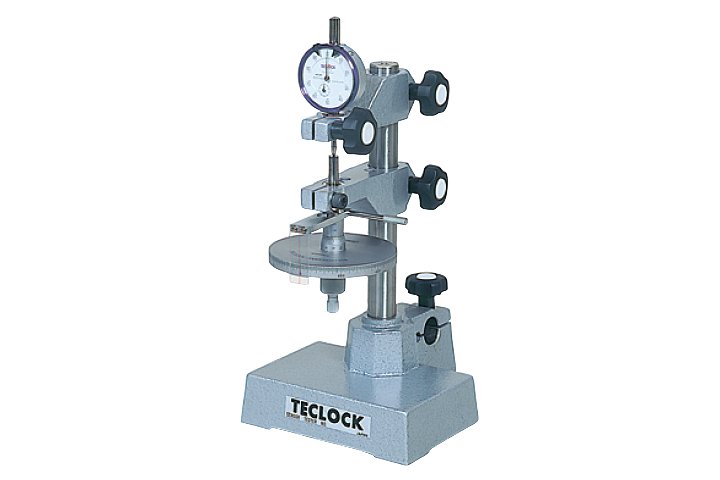

Calibration Tester
Electronic Equipment

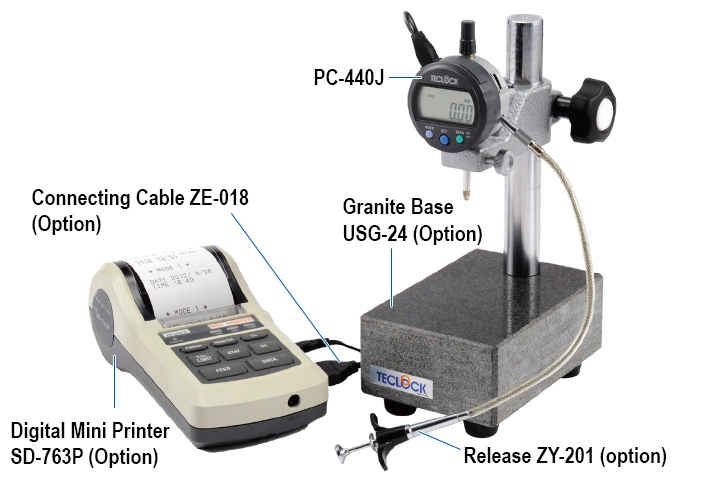

Electronic Digital Indicator (0.01 / 0.001mm), PC-Series

  • Data output and statistics transaction can be easily made
    by using digital indicator.
  • 0.01mm and 0.001mm resolution digital indicators are available.
  • Standard models are equipped with preset function and
    conventional models deleting preset functions are available.

As compact as standard dial indicators and can be placed where
dial indicator is used. Application can be enlarged like
statistical
calculation of measured value, comprising
measuring system by output signal.

Measuring Range 12.7mm Type
Standard Model

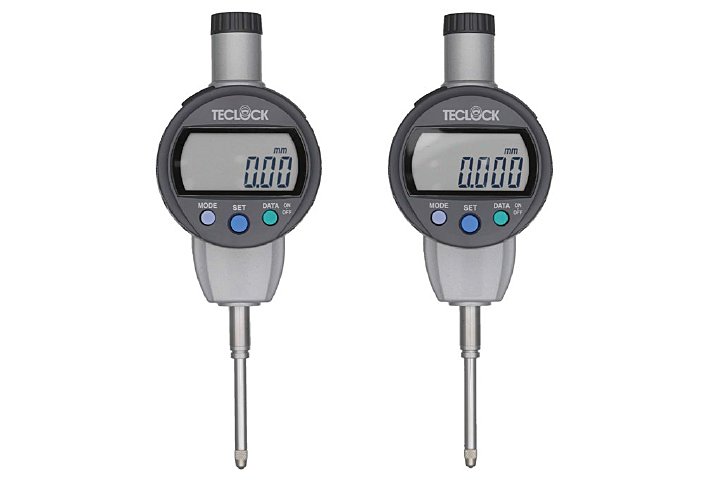

Measuring Range 25.4mm Type
Standard Model

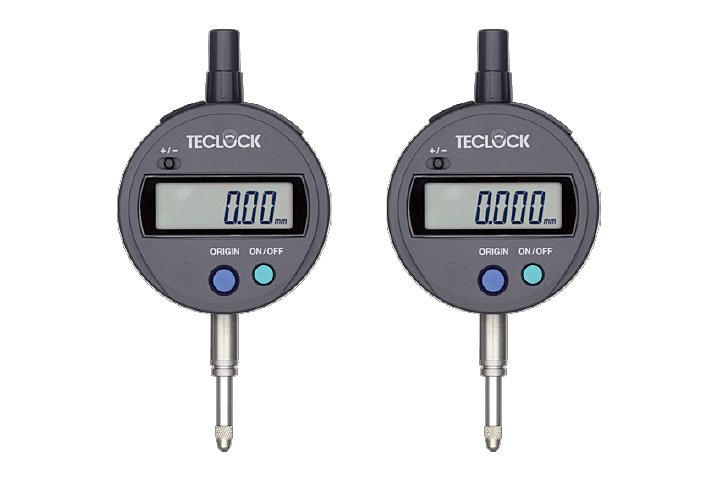

Measuring Range 12.7mm Type
Popular Model

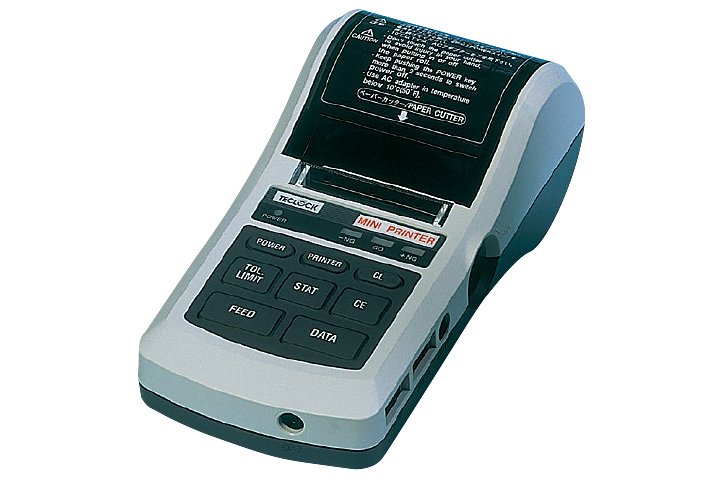

Digital Mini Printer

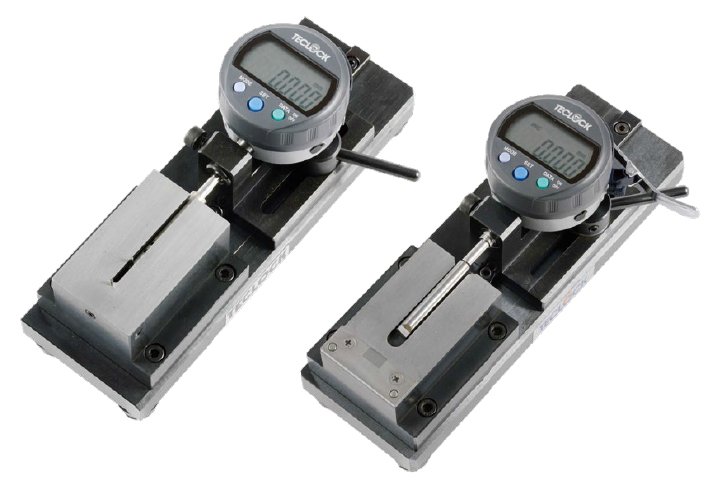

Digital Comparator
Digital Inside & Outside Comparator

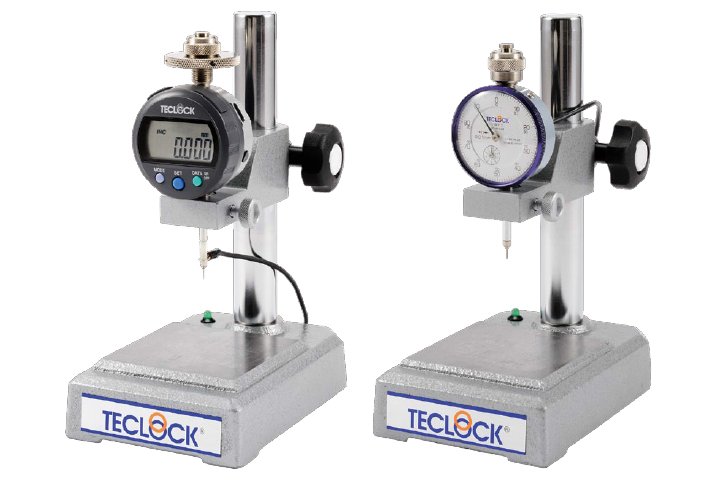

Sensor Gauge
Sensor Gauge Digital & Dial Type
STANDS

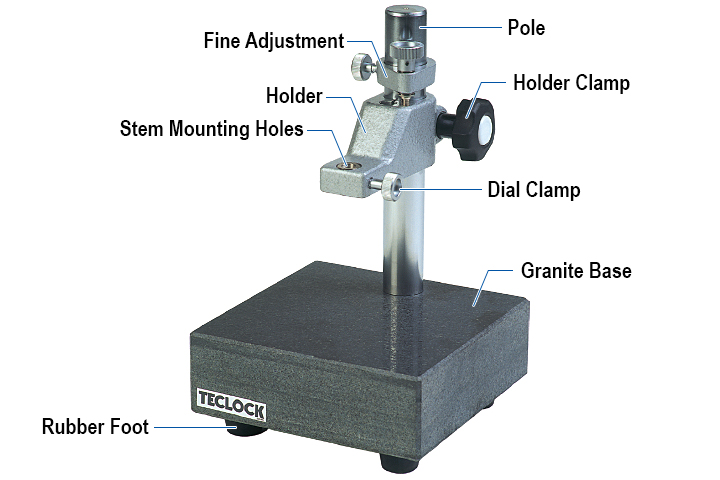

Granite Comparator Stands

Theses are stands which can make precision measurement
of work piece
by mounting Dial Indicator or Digital Indicator.
As to natural granite (micro-granite) base, its organization is
fine particle and work piece slides smoothly without ringing.

Stable and high flatness accuracy within 0.001mm / 200mm
square is also characteristics.

Please select referring to size of base or fine adjustment
device from various lineup.

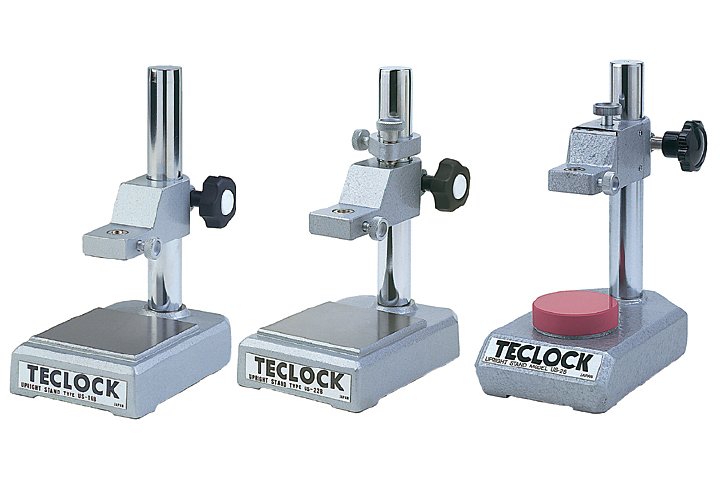

Upright Stands

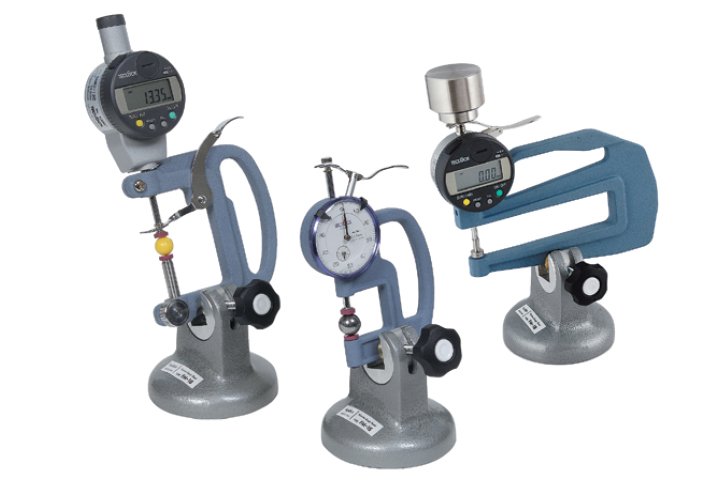

Holder Stand for Thickness Gauge

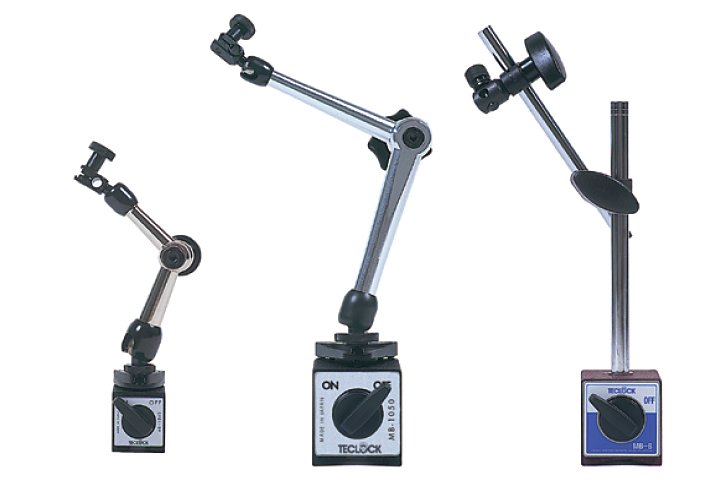

Magnetic Base
DUROMETER & IRHD Hardness Tester
Durometers show the degree of hardness by value
whether a non-rigid material like rubber is soft or
hard
(hardness gauge for rubber or plastic). Recently,
JIS
standard and ISO standard have been drastically
revised
and details of hardness tester of rubber and
method of
measuring hardness are changed.

As an all embracing manufacturer of non-rigid
material
hardness tester, Teclock proposes lots of
measuring
methods of measuring hardness of not only
rubber and
plastic but many non-rigid materials and elastic materials.

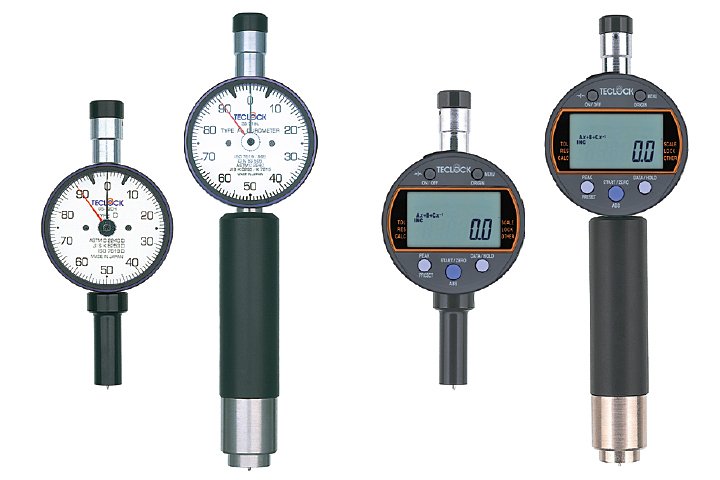

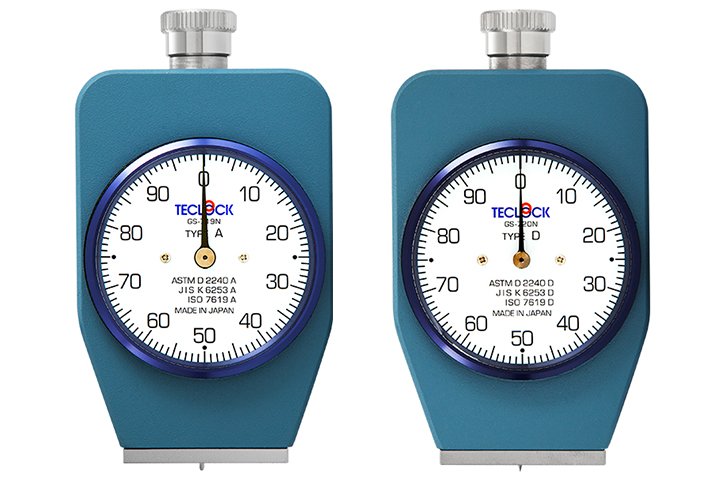

DUROMETER
Standard Type
DUROMETER

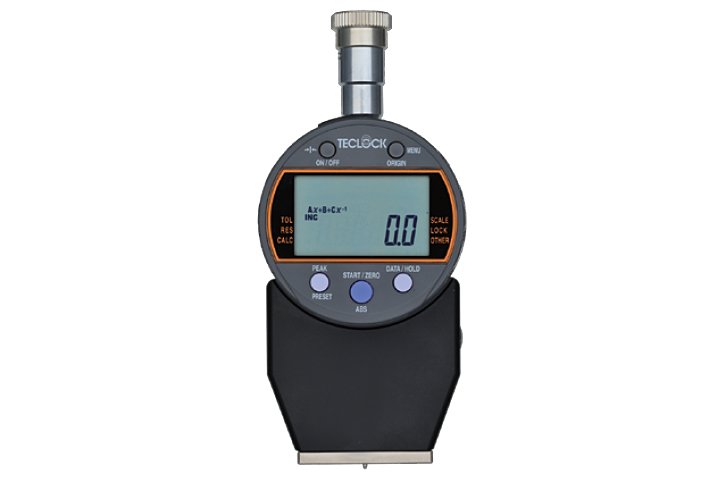

Digital Durometer
Automatic Hardness Tester
GX-02 series

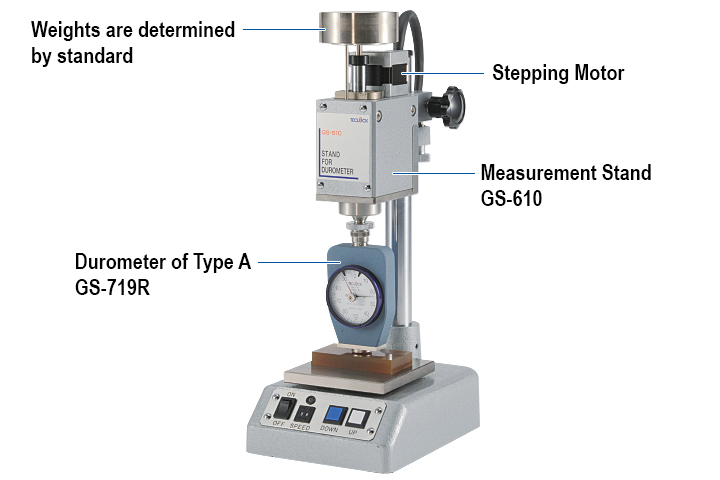

Measuring Stand for Durometer

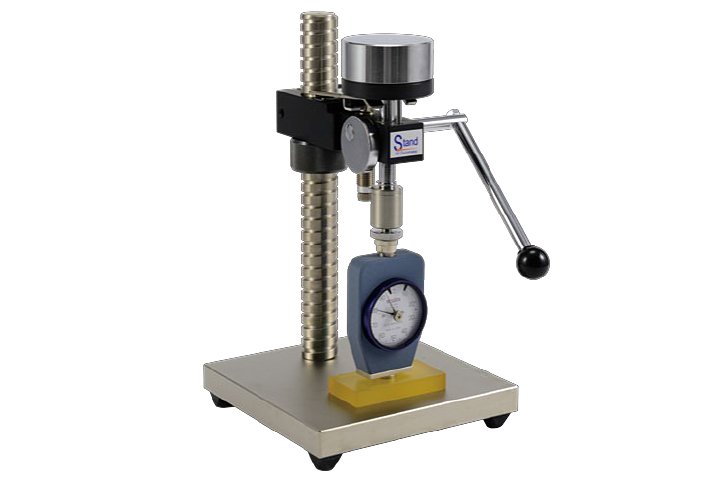

Manual Operation type Durometer Stand

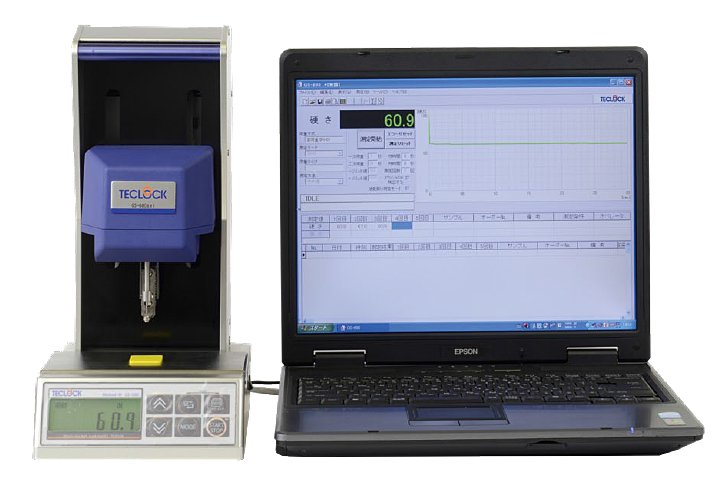

Totally Automatic type IRHD
M method Micro – size International Rubber Hardness Tester
