MEASURING TOOLS > PEACOCK
0.001mm and 0.01mm Zseries
These are high-accuracy dial gauges with the pointer giving less than a full turn that can resist rigorous continuous measurement.
The long stem is made of stainless steel, is high in strength and is malfunction-free due to fastening.
The dial faces except No. 18 and 17B are easy to read with green and orange (dead zone)
| 0.001mm Type |

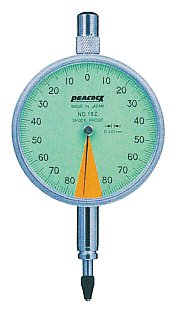

Model 15Z
| Graduation : | 0.001mm | ● Contact point (XB-1) |
| Range : | 0.16mm | ● Flat back |

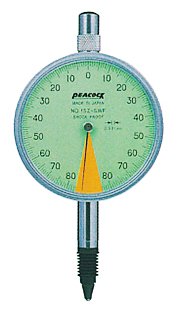

Model 15Z-SWF
| Graduation : | 0.001mm | ● Contact point (XB-2A) |
| Range : | 0.16mm | ● Flat back |
| ● Oil-proof type |

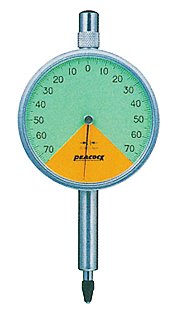

Model 5Z-XB
| Graduation : | 0.001mm | ● Contact point (XB-1) |
| Range : | 0.14mm | ● Flat back |

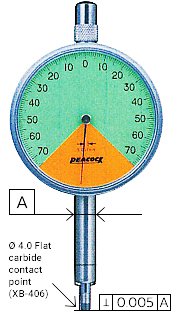

Model 5Z
| Graduation : | 0.001mm | ● Long Stem |
| Range : | 0.14mm | ● Flat back |

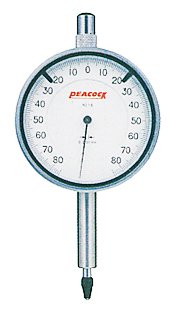

Model 18
| Graduation : | 0.001mm | ● Long stem |
| Range : | 0.16mm | ● Contact point (XB-1) |
| ● Oil-proof type ● Flat crystal ● Flat back |

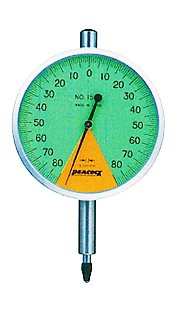

Model 15DZ
| Graduation : | 0.001mm | ● Large dial face (Ø66.5) |
| Range : | 0.16mm | ● Contact point (XB-1) |
| ● Flat back |
| 0.01mm Type |

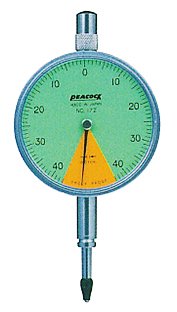

Model 17Z
| Graduation : | 0.01mm | ● Contact point (XB-1) |
| Range : | 0.8mm | ● Flat back |

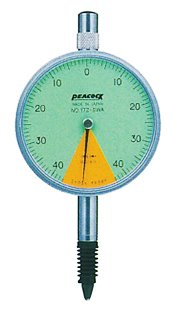

Model 17Z-SWA
| Graduation : | 0.01mm | ● Oil-proof type |
| Range : | 0.8mm | ● Contact point (XB-2) |
| ● Flat back |

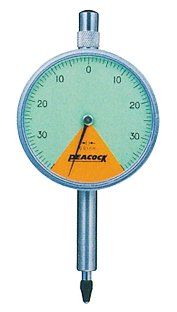

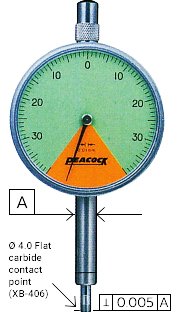

Model 107Z-XB
| Graduation : | 0.01mm | ● Long stem |
| Range : | 0.8mm | ● Contact point (XB-1) |
| ● Flat back |
Model 107Z
| Graduation : | 0.01mm | ● Long Stem |
| Range : | 0.8mm | ● Flat back |

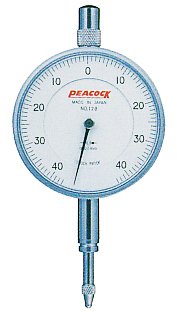

Model 17B
| Graduation : | 0.01mm | ● Contact point (X-1) |
| Range : | 0.8mm | ● Lug back |

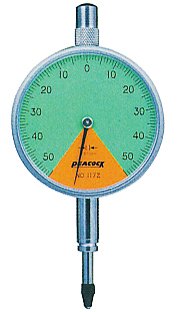

Model 117Z
| Graduation : | 0.01mm | ● Contact point (XB-1) |
| Range : | 1.0mm | ● Flat back |
| Miniature Type |

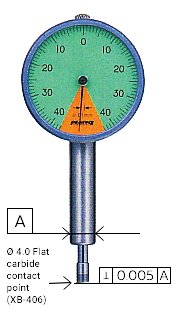

Model 47Z
| Graduation : | 0.01mm | ● Long Stem |
| Range : | 0.8mm | ● Flat back |

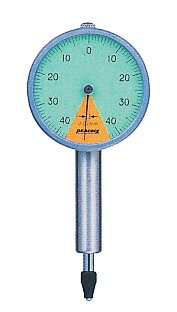

Model 47Z-XB
| Graduation : | 0.01mm | ● Contact point (XB-1) |
| Range : | 0.8mm | ● Flat back |

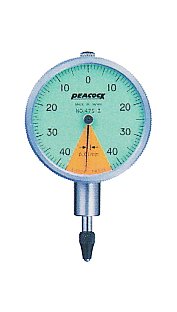

Model 47SZ
| Graduation : | 0.01mm | ● Contact point (XB-1) |
| Range : | 0.8mm | ● Flat back |

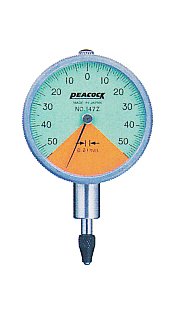

Model 147Z
| Graduation : | 0.01mm | ● Small dial face (Ø36) |
| Range : | 1.0mm | ● Contact point (XB-1) |
| ● Flat back |

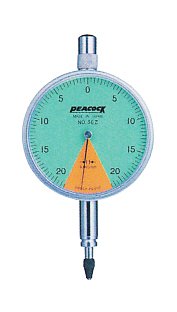

Model 36Z
| Graduation : | 0.005mm | ● Contact point (XB-1) |
| Range : | 0.4mm | ● Flat back |

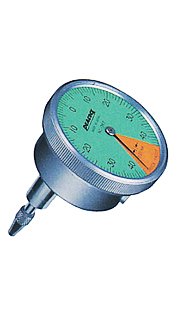

Model 196Z
| Graduation : | 0.01mm | ● Contact point (X-112) |
| Range : | 0.8mm | ● Back plunger type |
Without change lever PCN series
The New Pic Test is a lever type dial indicators used in all over the world.It is a measuring instrument used for measurements of restricted areas,
and the outside/inside, groove width and centering with the dial gauge installed to the lathe or the milling cutting machine for measurements
with the gauges held on the height gauges.
| ● Without change lever (Automatic inverse type) The lever type dial gauge of this type has no change lever, the contact point inverses automatically in normal or reverse direction as desired and pointer turns always CW to improve the measuring efficiency. | ● Miniature Bearing Used The miniature bearing used as a bearing at the pivot of the contact point to show good indication stability without any effect by rod play. | ● O-ring used Oil resistance is enhanced by seating the O-ring in the turning sectionof the outer frame. |

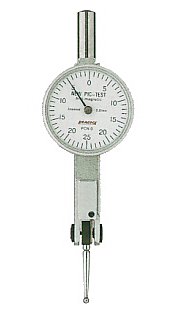

Model PCN-0
| Graduation : | 0.01mm | ● Small dial face (Ø29) |
| Range : | 0.5mm |

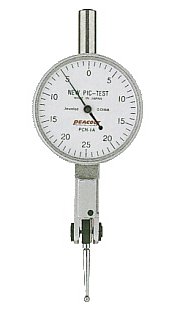

Model PCN-1A
| Graduation : | 0.01mm |
| Range : | 0.5mm |

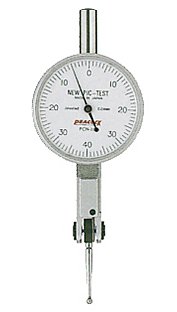

Model PCN-1B
| Graduation : | 0.01mm |
| Range : | 0.8mm |

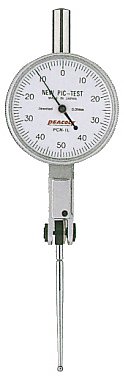

Model PCN-1L
| Graduation : | 0.01mm | ● Long contact point (L=42.8mm.) |
| Range : | 1.0mm |

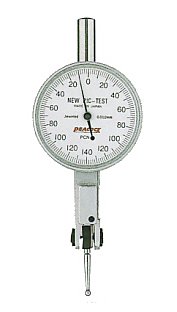

Model PCN-2
| Graduation : | 0.002mm |
| Range : | 0.28mm |

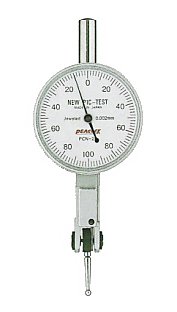

Model PCN-2B
| Graduation : | 0.002mm |
| Range : | 0.2mm |

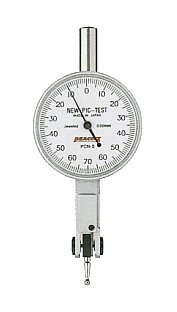

Model PCN-S
| Graduation : | 0.001mm | ● High accuracy |
| Range : | 0.14mm |

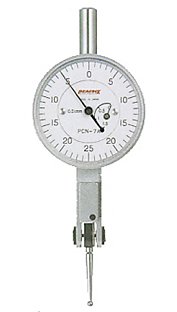

Model PCN-7A
| Graduation : | 0.01mm | ● Wide measuring range |
| Range : | 1.5mm | ● with Shorter Pointer |

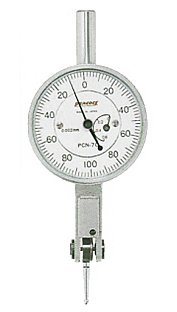

Model PCN-7C
| Graduation : | 0.002mm | ● Wide measuring range |
| Range : | 0.6mm | ● with Shorter Pointer |
